WELL-BALANCED SOUND
Optimal sound reproduction features well-balanced combination of vocal and bass.

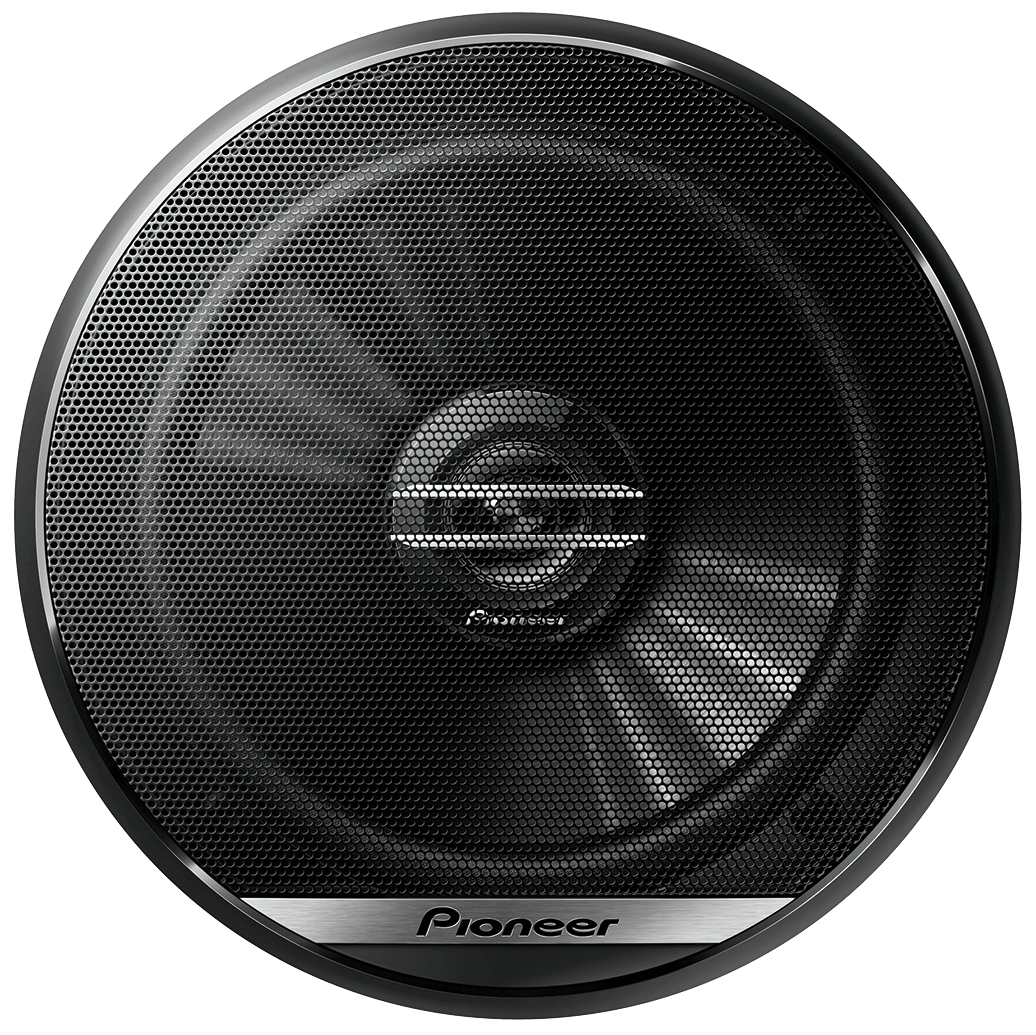

TS-G160C-2
TS-G1610F
6.5" Dual Cone Speaker
TS-G1320F
5.25" 2-Way Speaker
TS-G1020F
4" 2-Way Speaker
TS-G1010F
4" Dual Cone Speaker
P.F.S.S. SPIDER
Progressive Flex Suspension System supports the voice coil effectively by dampening the large cone vibration and enhancing linearity of sound reproduction. Its soft part makes movement smooth and reproduces clear sound and at excessive input, its hard part controls excessive vibration and prevents movement error.
General
TS-G160C-2 | TS-G1610F | TS-G1320F | TS-G1020F | TS-G1010F | |
| GRADE | G Series | G Series | G Series | G Series | G Series |
| Size | 16 cm (6.3"") (Woofer) 30 mm (Tweeter) | 16 cm (6.3") | 13 cm (5.25") | 10 cm (4") | 10 cm (4") |
| Maximum Music Power | 300 W (45 W) | 280 W | 250 W | 210 W | 190 W |
| RMS | 45 W | 40 W | 35 W | 30 W | 30 W |
| Frequency Response | 42 Hz to 26 kHz | 37 Hz to 16 kHz | 33 Hz to 24 kHz | 35 Hz to 27 kHz | 44 Hz to 25 kHz |
| Sensitivity ( 1W / 1m ) | - | 90 dB | 88 dB | 87 dB | 89 dB |
| Impedance | 4Ω | 4Ω | 4Ω | 4Ω | 4Ω |
| Mounting Depth | 42 mm | 42 mm | 44 mm | 43 mm | 43 mm |
| Cut-Out Dimensions | Ø128 mm | ø128 mm | ø121 mm | ø106 mm | ø106 mm |
