CHAMPION SERIES SUBWOOFER

Tougher at handling more high power input at higher volume without compromising higher quality.

Pioneer Dust Protection design reliably prevents dust from interfering with uncompromising speaker performance and durability.

Pioneer

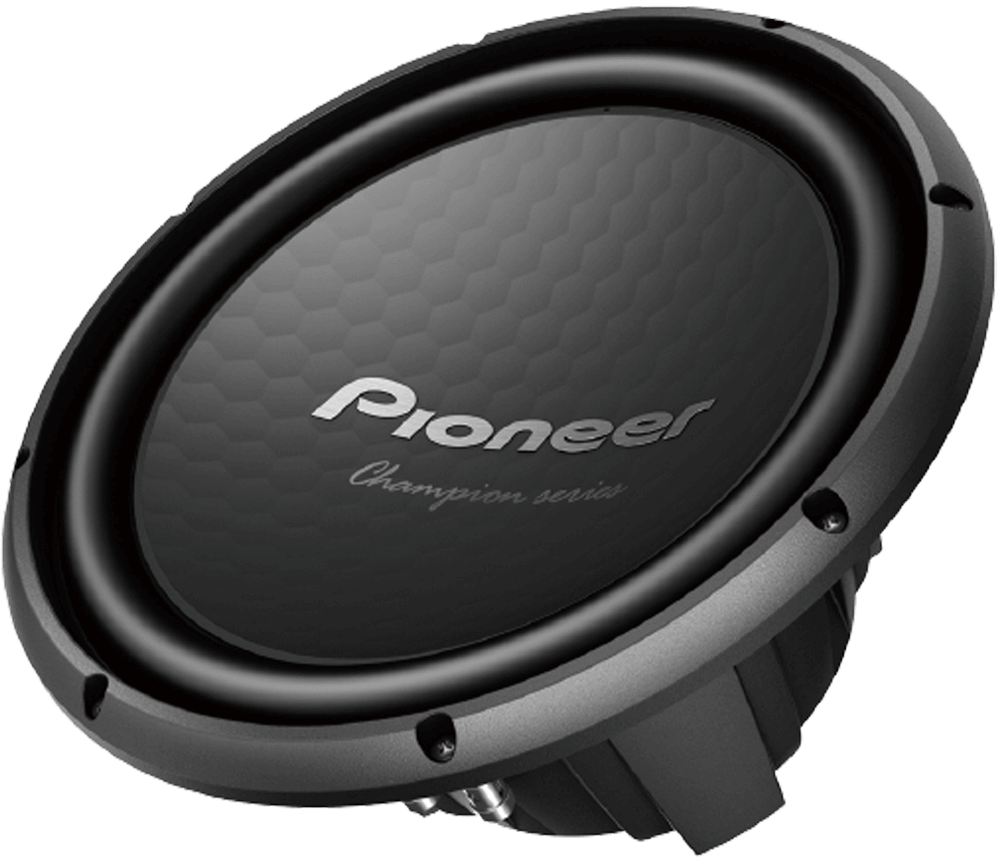

TS-W32S4

12" Single Voice Coil 4 ohm Component Subwoofer
Pioneer

TS-W3004D4

12" Champion Series Pro DVC 4 ohm Component Subwoofer
Pioneer

TS-W312D4

12" Champion Series DVC 4 ohm Component Subwoofer
Pioneer

Punchy & Rhythmical Bass

High Rigid Composite Cone.
Minimizes deformation even with large displacement.

Dust Protection Design

Protective design shuts out dust.

General

Pioneer

TS-W32S4

 Pioneer

TS-W3004D4

 Pioneer

TS-W312D4

GRADEChampion Series -Champion Series
Size30 cm (12")30 cm (12")30 cm (12")
Maximum Music Power1500 W2400 W1600 W
RMS400 W800 W500 W
Frequency Response22 Hz to 1.6 kHz20 Hz to 1.6 kHz20 Hz to 1.6 kHz
Sensitivity ( 1W / 1m )90 db94 dB92dB
ImpedanceSingle 4ΩDual 4ΩDual 4Ω
Mounting Depth146 mm190 mm157 mm
Cut-Out Dimensionsø281 mmø283 mmø283 mm
Resonance Frequency30 Hz37 Hz37 Hz
Xmax -19.4 mm11.3 mm
Magnet Weight1,300 g3,250 g2,540 g
Recommended Enclosure35.4 liters35.4 liters35.4 liters
